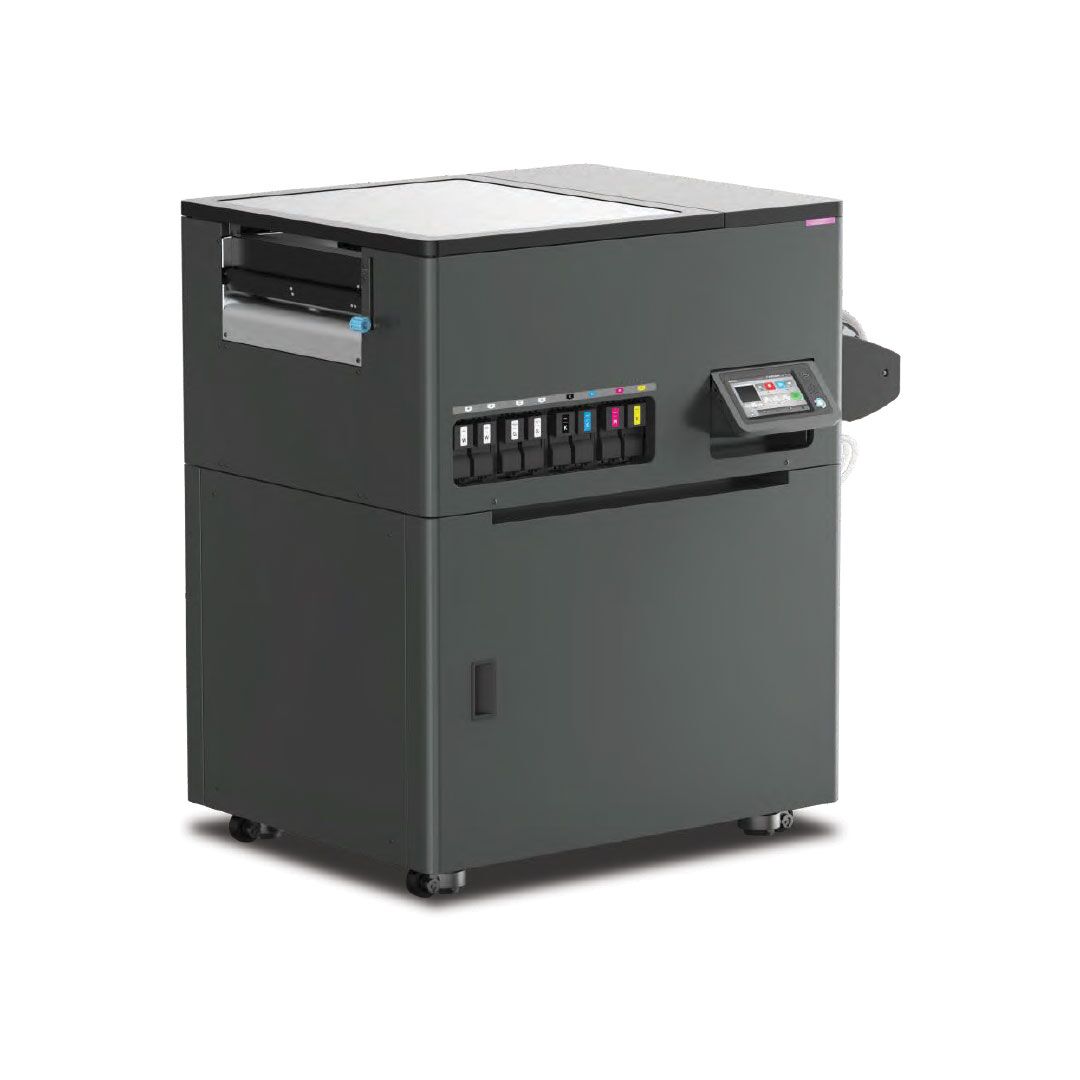

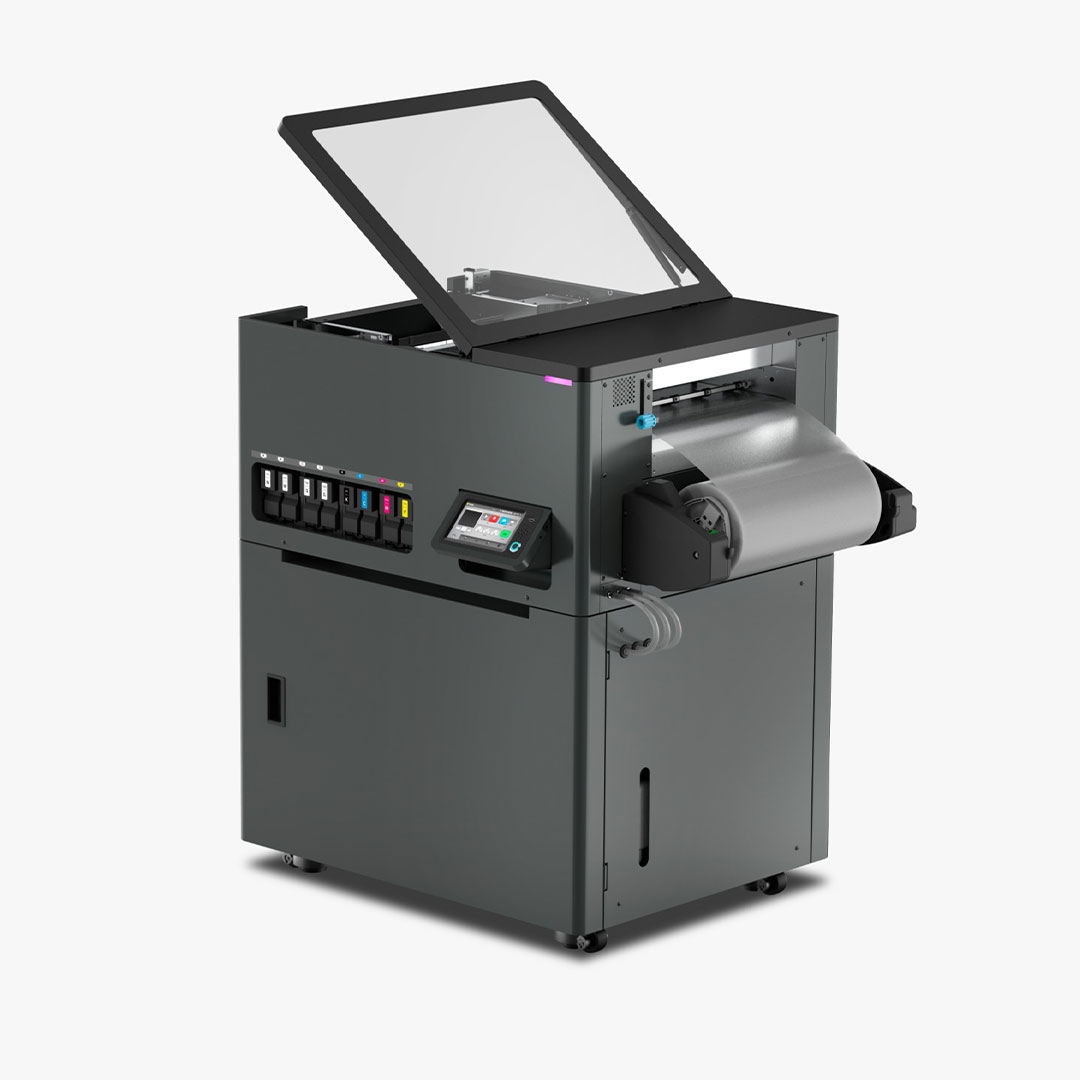

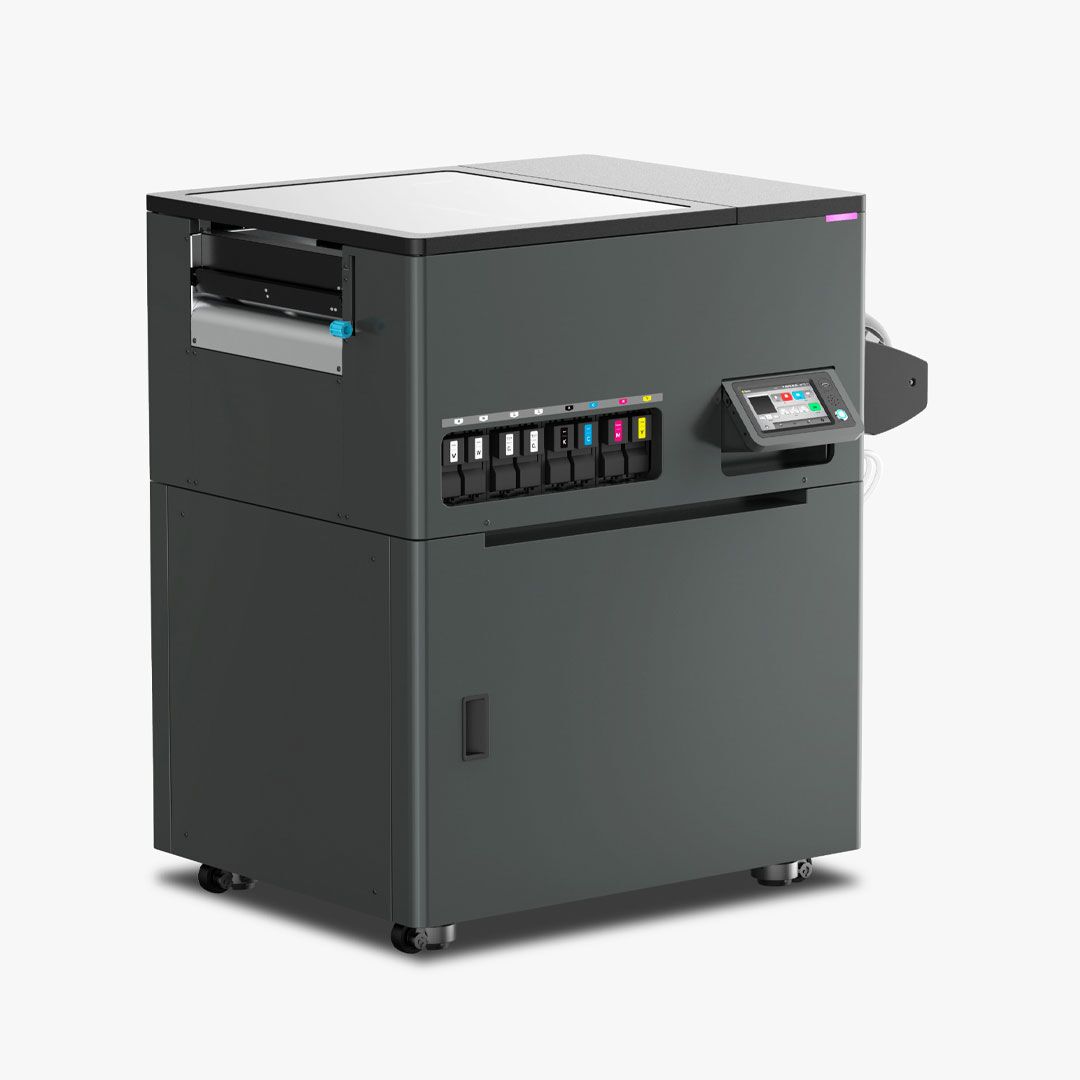

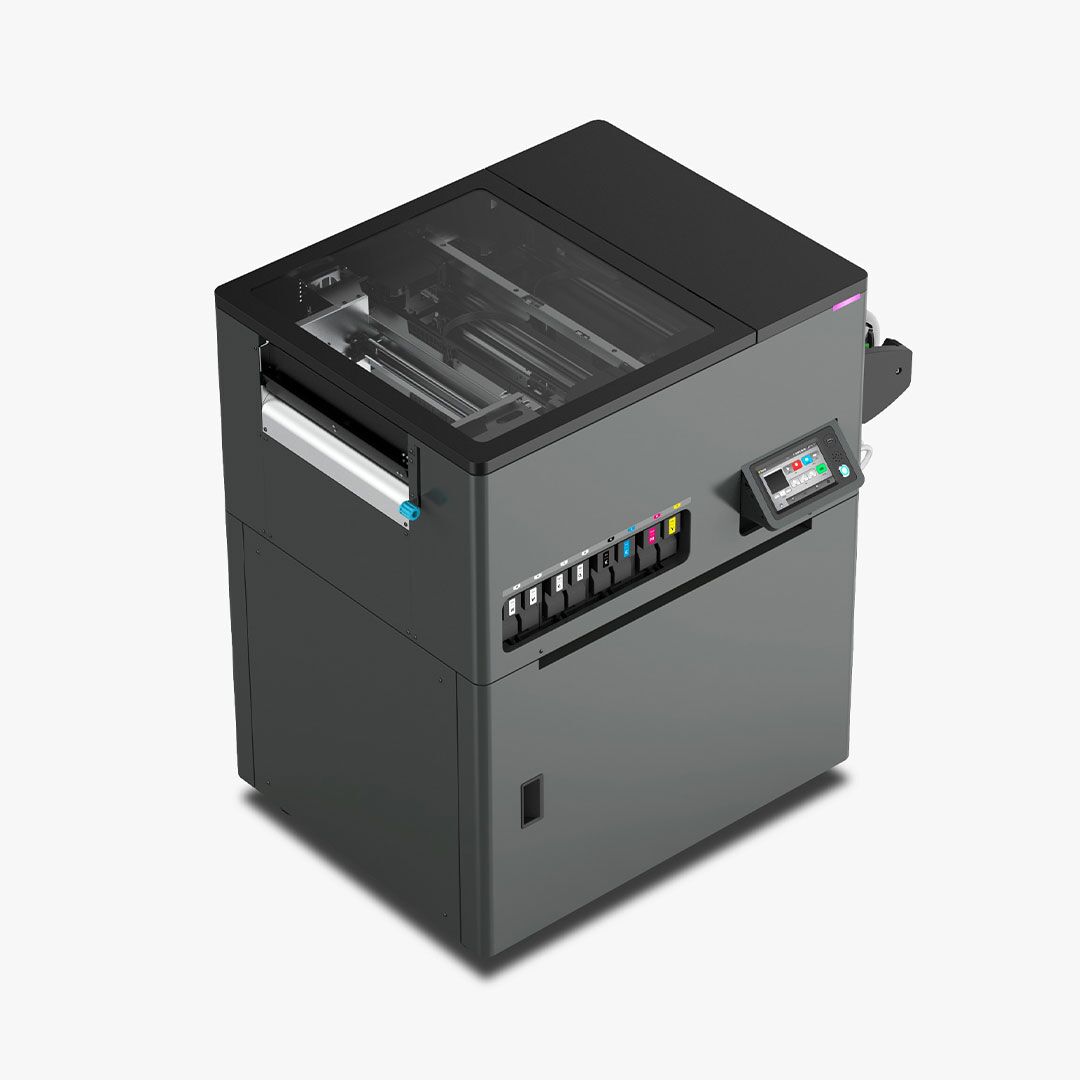

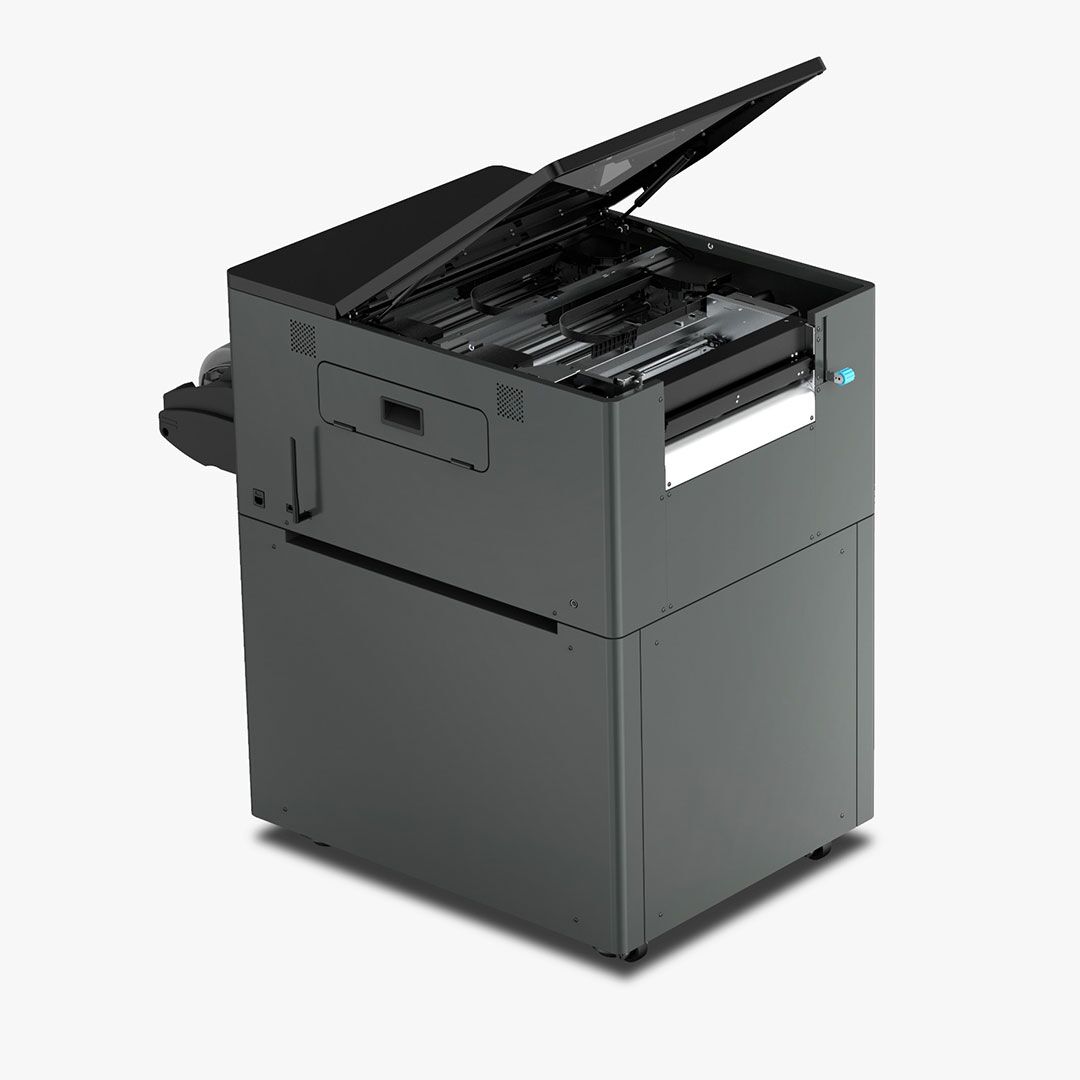

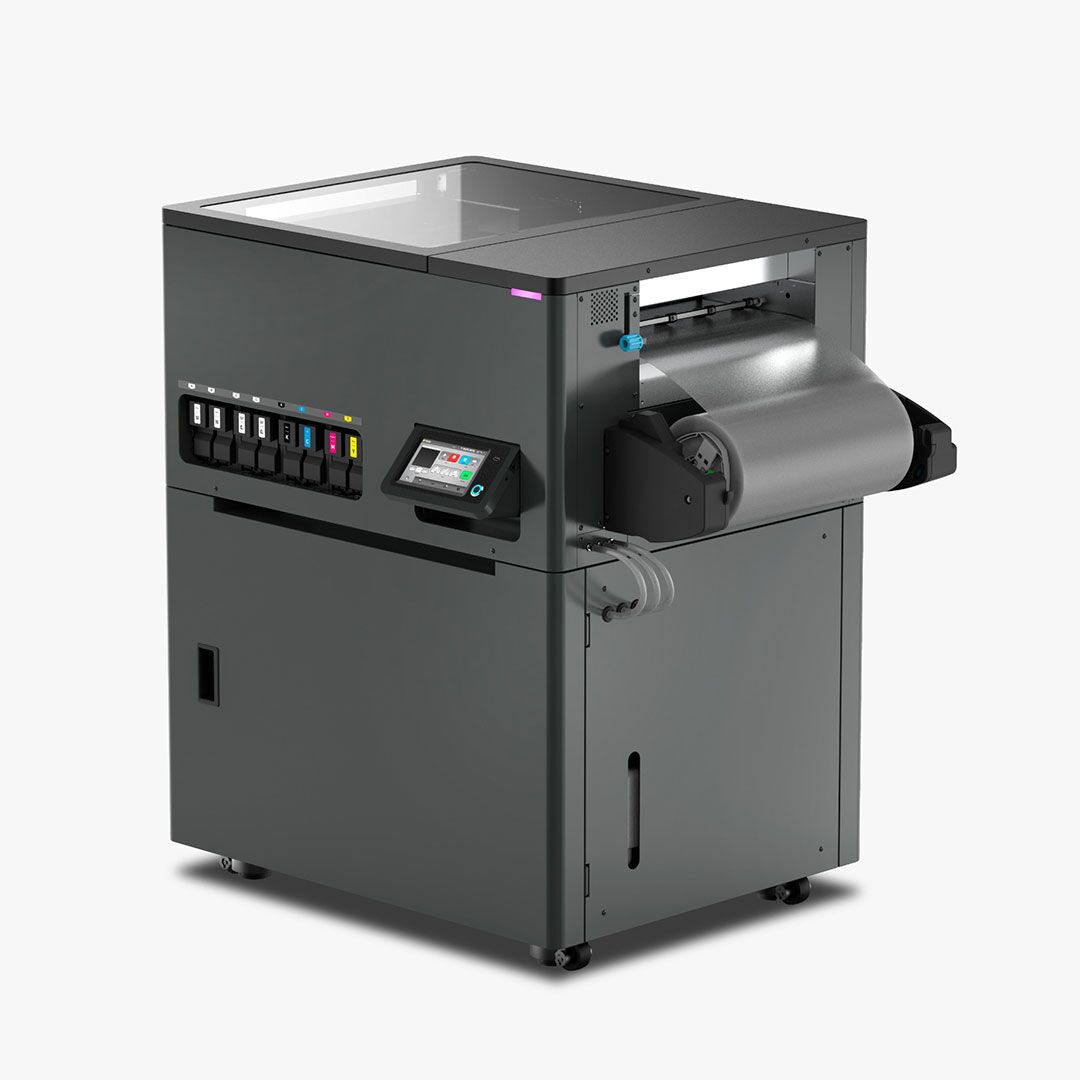

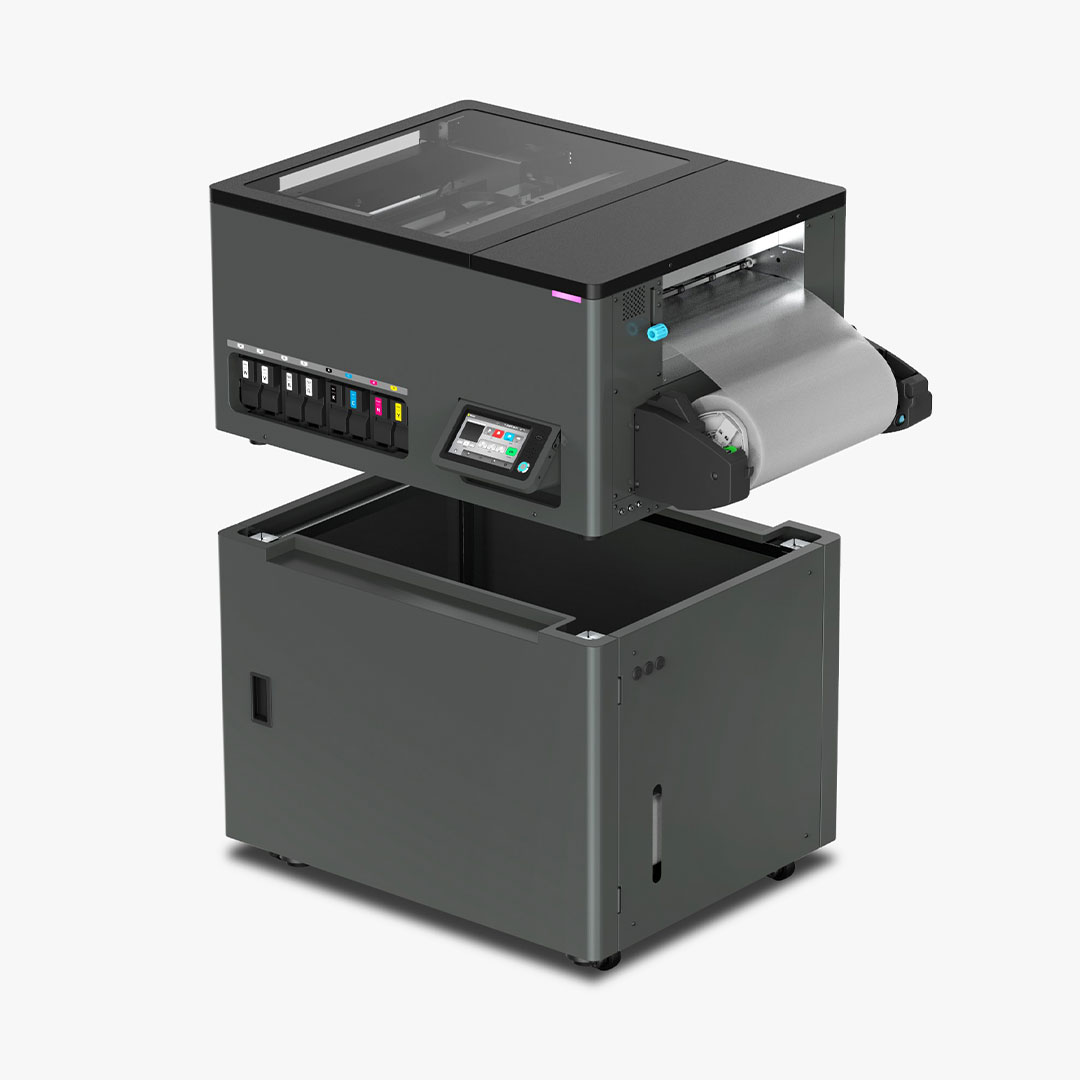

RICOH XTF D430 “DTF Cube”
RICOH XTF D430 “DTF Cube”
Vibrant prints on a wide array of garments.
Produce vibrant t-shirts, hoodies, tote bags, and more with the DTF Cube 400. The direct to film technology delivers fast, high-quality results across a wide range of fabrics. The advanced CMYK + white print process ensures your designs stand out on any colour. RICOH’s eco-friendly, textile inks create rich, wash-resistant graphics with a soft finish, ideal for fashion and promotional garments.
Benefit from easy, automated operation.
The compact direct to film printer makes garment printing easy. Its intuitive 7-inch touchscreen simplifies control, while the automatic roll feeder and cutter increase productivity, ensuring a smooth, hands-off workflow. Designed to automate and speed up your production processes, the system is perfect for busy print shops and growing businesses, delivering reliable results with minimal effort and maximum efficiency.
Enjoy reliable and productive performance.
You can count on the DTF Cube 400 for reliable performance. A built-in status light provides instant updates, while dual feed technology ensures perfect media tension, preventing printhead strikes. Industrial- grade Ricoh printheads and automatic wet-cap maintenance minimise downtime, ensuring smooth, uninterrupted performance. This system delivers consistent, top-tier results, print after print, without compromise.
Integrated, end-to-end production system.
RICOH bundles ColorGATE Textile Productionserver with the DTF Cube 400 for a seamless workflow and precise colour control. Combined with the DTF-A30 powder shaker/oven—featuring automated powder recycling and multi-stage heating—the system provides a powerful, end- to-end solution that streamlines garment production and boosts efficiency. Perfect for growing businesses aiming for top-quality, professional results.
| System: | Tabletop roll-fed printer with auto cutter |
|---|---|
| Printheads: | RICOH piezo-electric drop on demand printheads |
| Colours: | Cyan, magenta, yellow and black (4 channels), plus white (2 channels) |
| Resolution: | 1,200 x 1,200 dpi (maximum) |
| Media: | 423 mm DTF film |
| Print Width: | 407.2 mm (maximum) |
| Ink: | RICOH heat transfer inks, 200ml and 500ml cartridges, ECO PASSPORT certified |
| Operating Conditions: | Temperature: 15–32°C Relative humidity: 45–80% RH |
| Noise Emissions: | 67 dB(A) or less |
| Dimensions (WxDxH): | 1,295 x 798 x 538 mm |
| Weight: | 110 kg (printer) |
| Power Supply: | 100~240 VAC, 50–60 Hz, 4 A or more |
| Energy Consumption: | Approx. 90 W (standby); Maximum: 400 W (operation) |
| Connectivity: | Ethernet, USB Type A (standard); Wi-Fi (option) |
| Supported RIP Software: | ColorGATE Textile Production Server*, Kothari, CadLink, Neo Stempa *ColorGATE Textile Production Server included with the printer when purchased from RICOH |
| Maintenance: | Temperature and Humidity Measuring, Maintenance Alerts, Auto Print Head Cleaning, Precise Ink Monitoring, Automatic Wet Cap, Automatic Head Wiper Cleaning |
| Certifications: | NRTL(UL 62368-1, CAN/CSA 62368-1), CB(IEC 62368-1), LVD(Low Voltage Directive (EN IEC 62368-1), FCC ClassA, ICES-003 ClassA, CE EMC(EMI): EN 55032 ClassA, EMS: EN55035, Harmonic: EN61000-3-2, Flicker: EN61000- 3-3, EMF: EN 62311), VCCI ClassA |
| Environmental: | RoHS, REACH |
| Included Items: | ColorGATE Textile Production Server (TPS) license, Cleaning Liquid, Cleaning Applicators, Lint Free Wipers, Polyethylene gloves, Grease, Power cord, Ethernet Cable, Waste tube, Safety & Quick Installation Guide, User Maintenance Precautions, Bundled Film, Bundled Ink set, Waste bottle |
