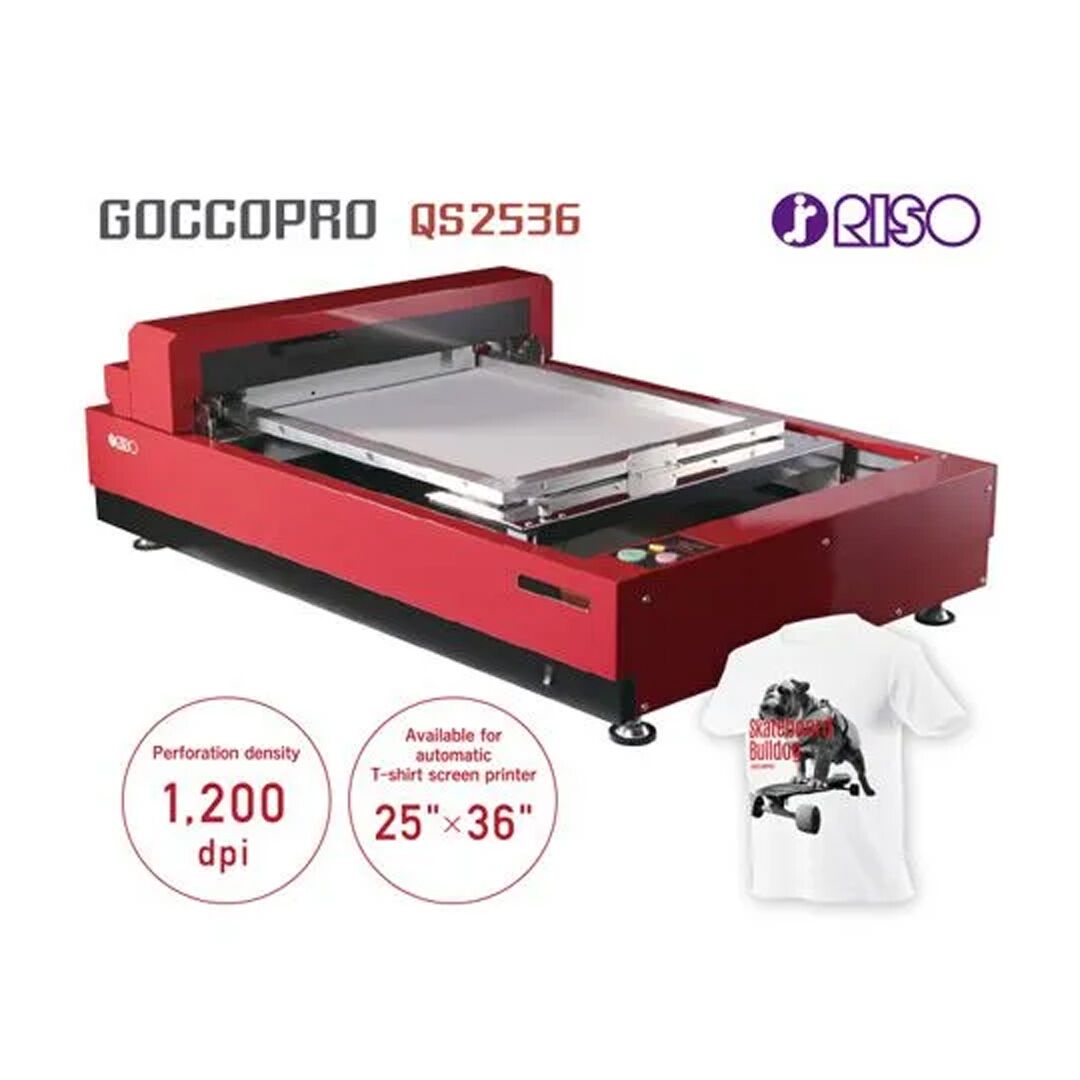

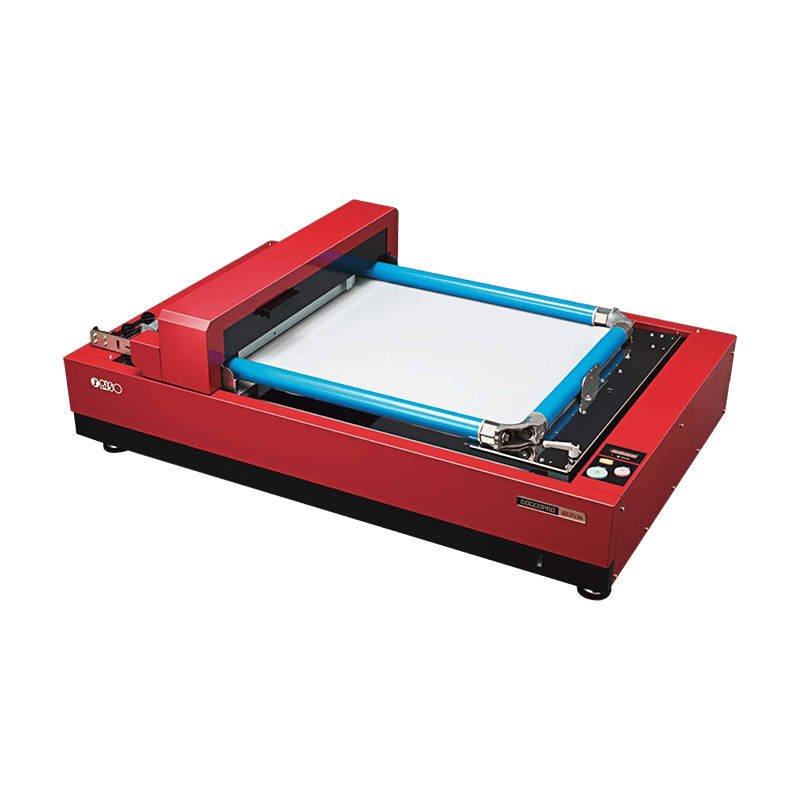

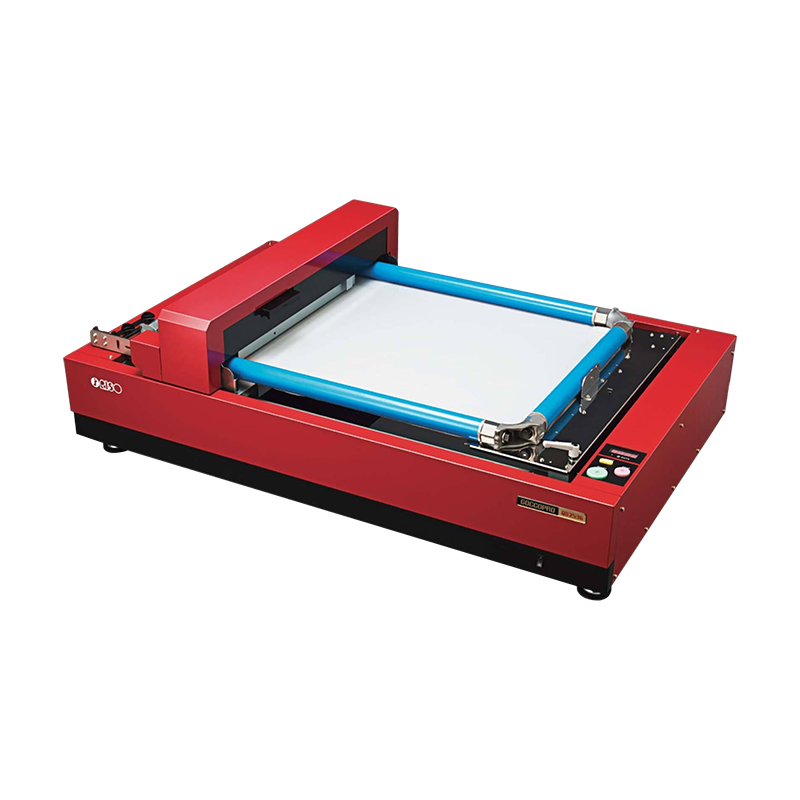

GoccoPro QS 2536

GoccoPro QS 2536

The Next Generation Digital Screen Maker

Goccopro QS2536 is the next-generation screen maker which makes a revolution in the screen making process using the power of digital. Its high positioning precision suitable for full color and multi-color screen making. Goccopro QS2536 is capable of reproducing photographic images with great detail than conventional screen printing.

Contact Us

Description


Consumables:

RISO DIGITAL SCREEN QS MASTER 70P-113-30
#70 mesh Width:1,130mm (44.5″) Length:30m (32.8yd)
RISO DIGITAL SCREEN QS MASTER 120P-113-50
#120 mesh Width:1,130mm (44.5″) Length:50m (54.7yd)
RISO DIGITAL SCREEN QS MASTER 200P-113-50
#200 mesh Width:1,130mm (44.5″) Length:50m (54.7yd)

null

Sprcifications

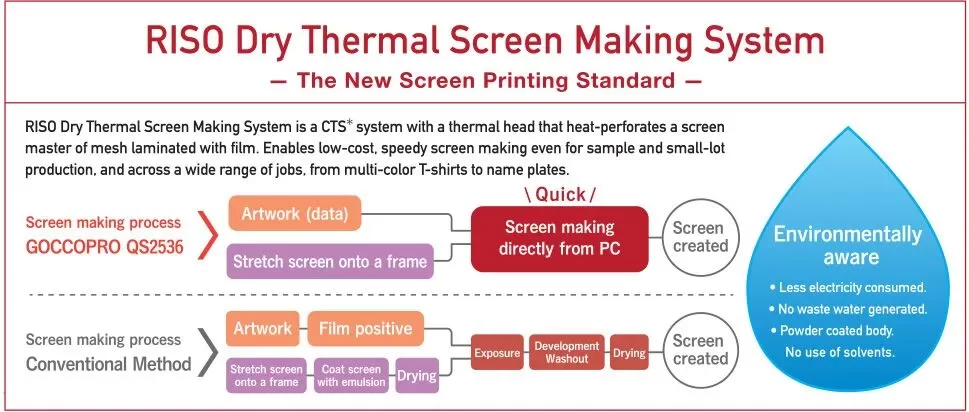

Screen Making Method High-speed digital screen making
Screen frame size
(Outer dimensions)
(width x length)
Min. 590mm x 310mm (23.23″ x 12.20″)(with a frame thickness of 30 mm(1.18″))
Max. 635mm x 914mm (25.00″ x 36.00″)
Screen frame thickness 20 mm to 45 mm (0.79″ to 1.77″)
Image area size
(width x length)
Min. 10mm x 10mm (0.39″ x 0.39″)

Max. 457mm x 759mm (17.99″ x 29.88″) (with a frame thickness of 20 mm(0.79″))

455mm x 734mm (17.91″ x 28.90″) (with a frame thickness of 45 mm(1.77″))
Screen making time Approx. 200 sec (A2 (420 mm x 594 mm (16.54″ x 23.39″)) image area size)
Resolution 600 dpi x 1,200 dpi (perforation density: 1,200 dpi)
Memory capacity 128MB
Supported OS Microsoft Windows® 10(32-bit/64-bit), Windows® 8.1(32-bit/64-bit), Windows® 7(32-bit/64-bit)

OS X10.9 (64-bit)/10.10(64-bit)/10.11(64-bit), macOS 10.12/10.13/10.14(64-bit)/10.15
Network interface USB2.0
Power source AC100-240V, 50-60Hz, 3.6-1.4A
Power consumption Maximum: 300 W

When standing by: 50 W or lower
Operating environment Temperature: 15℃ to 30℃/ 59F to 86F
Dimensions

(W x D x H)

During use: 1,215 mm x 800 mm x 410 mm (47.83″ x 31.50″ x 16.14″)

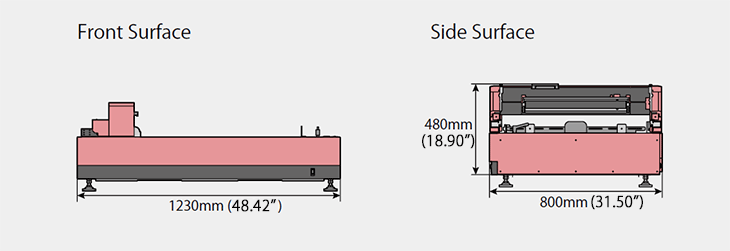

Required space

(W x D x H)

1,230 mm x 800 mm x 480 mm (48.43″ x 31.50″ x 18.90″)
Weight Approx. 70 kg (154 lb.)
