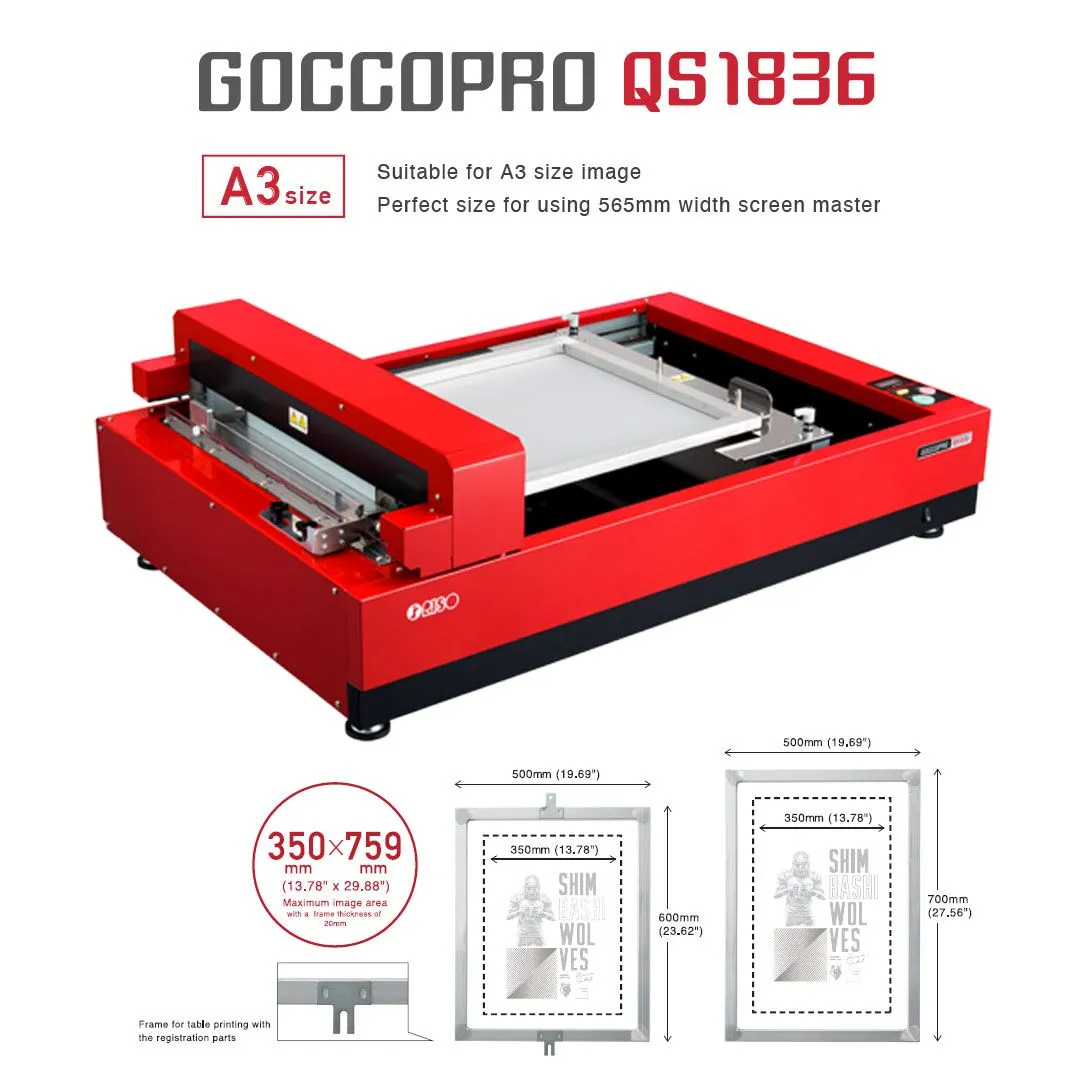

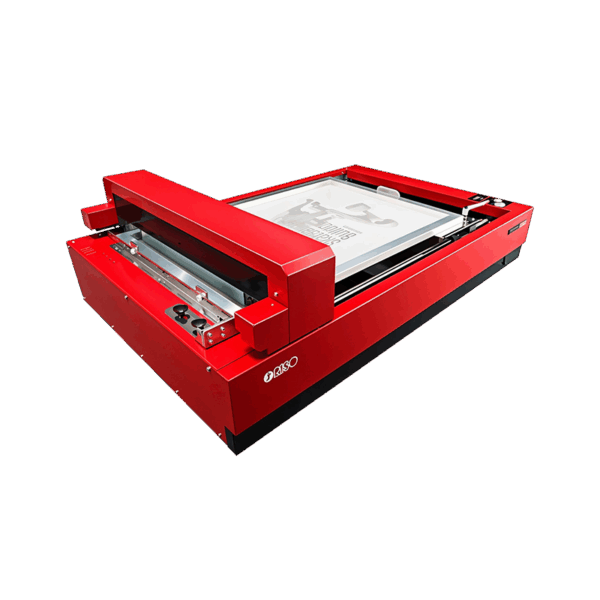

GOCCOPRO QS1836 – جهاز صناعة الشبلونات الاحترافي
Discover the GOCCOPRO QS1836, the perfect solution for A3 size image printing, whether for automatic or manual screen printing needs. This versatile machine is tailored to handle A3-sized designs with precision and ease, ensuring that your prints come out flawless every time. What sets the GOCCOPRO QS1836 apart is its remarkable flexibility, seamlessly accommodating both automated production lines and manual printing processes. Plus, it’s designed to be incredibly economical, saving you both time and resources without compromising on quality. If you’re looking for a screen printing solution that combines affordability with efficiency while delivering top-notch results for A3 size images, the GOCCOPRO QS1836 is your answer. Elevate your printing projects to new heights and experience the ultimate in flexibility and cost-effectiveness.
- No screen making experience required
- Work directly from computer to screen
- Eliminates steps like exposure and drying
- No need for darkrooms and washout booths
- No need to store large number of screens
- Compact size fits on a table
- Corresponds to narrow frames resulting in lower screen master cost
- Outsourced jobs can be profitably completed in-house
- Perfect for short-run printing and test production
- No need for emulsions and washout

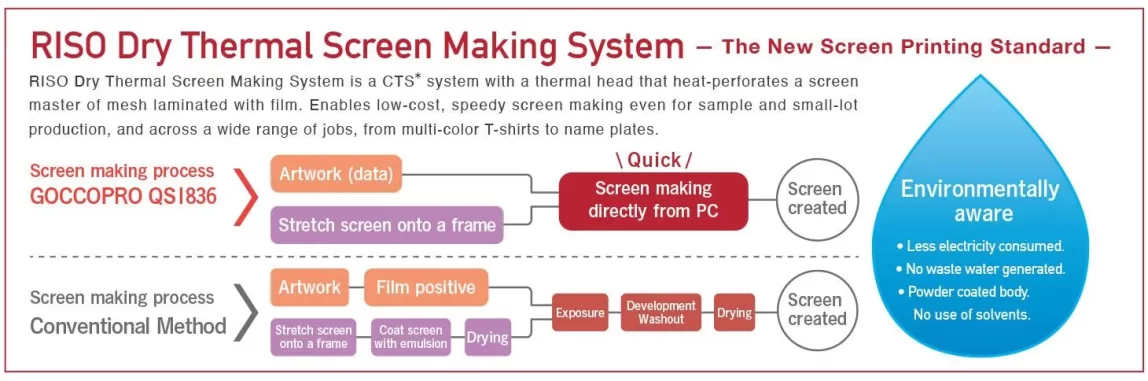

- Dry screen making process with thermal screen technology
Screen making method | High-speed digital screen making |
Screen frame size (Outer dimensions) (width x length) | Min. 440mm x 310mm (17.32″ x 12.20″) with a frame thickness of 20 mm (0.79″) Max. 635mm x 914mm (25.00″ x 36.00″) Using with the screen frame retainer plates 635mm x 922mm (25.00″ x 36.30″) Using without the screen frame retainer plates |
Screen frame thickness | 20 mm to 45 mm (0.79″ to 1.77″) |
Image area size (width x length) | Min. 10mm x 10mm (0.39″ x 0.39″) Max. 350mm x 759mm (13.78″ x 29.88″) with a frame thickness of 20 mm (0.79″) 350mm x 734mm (13.78″ x 28.90″) with a frame thickness of 45 mm (1.77″) |
Screen making time | Approx. 200 sec (A2 (420 mm x 594 mm (16.54″ x 23.39″)) image area size) |
Resolution | 600 dpi x 1,200 dpi (perforation density: 1,200 dpi) |
Memory capacity | 128MB |
Network interface | USB2.0 |
Power source | AC100-240V, 50-60Hz, 3.6-1.4A |
Power consumption | Maximum: 300 W When standing by: 50 W or lower |
Operating environment | Temperature: 15℃ to 30℃/ 59F to 86F |
Dimensions (W x D x H) | During use: 1,215 mm x 800 mm x 410 mm (47.83″ x 31.50″ x 16.14″) |
Required space (W x D x H) | 1,230 mm x 800 mm x 480 mm (48.43″ x 31.50″ x 18.90″) |
Weight | Approx. 70 kg (154 lb.) |

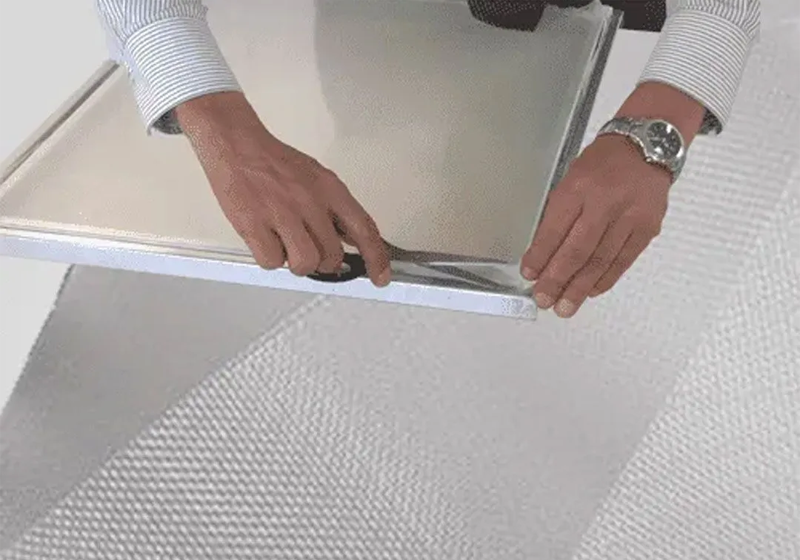

SCREEN MASTER
Plastisol and water-based ink are mostly applicable.
*For solvent-based and UV ink, it is recommended to do suitability test before use.
- 70 mesh : Appropriate for textile printing such as T-shirts and towels, especially printing with coarse-grained ink such as gold ink.
- 120mesh : Appropriate for textile printing. Well-balanced for printing both fine text and solid images.
- 200mesh : Appropriate for fine-quality printing on materials like textiles, plastic, metal etc.
- PINK : Screen masters-colored in pink are to improve visibility of exposed image. Screen performance itself is the same as the above screen masters.
| Product Name | Mesh | Width | Length | Applicable Models |
|---|---|---|---|---|
| RISO DIGITAL SCREEN MASTER 70P-32-12 | 70mesh | 320mm(12.6") | GOCCOPRO 100 | |
| RISO DIGITAL SCREEN MASTER 120P-32-12 | 120mesh | |||
| RISO DIGITAL SCREEN MASTER 200P-32-12 | 200mesh | |||
| RISO DIGITAL SCREEN QS MASTER 70P-113-30 | 70mesh | 1,130mm(44.5") | 30m(32.8 yd) | GOCCOPRO QS200, GOCCOPRO QS1836, GOCCOPRO QS2536 |
| RISO DIGITAL SCREEN QS MASTER 70P-113-30 PINK | ||||
| RISO DIGITAL SCREEN QS MASTER 70P-56-30 | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 70P-56-30 PINK | ||||
| RISO DIGITAL SCREEN QS MASTER 120P-113-50 | 120mesh | 1,130mm(44.5") | 50m(54.7 yd) | |
| RISO DIGITAL SCREEN QS MASTER 120P-113-50 PINK | ||||
| RISO DIGITAL SCREEN QS MASTER 120P-56-50 | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 120P-56-50 PINK | ||||
| RISO DIGITAL SCREEN QS MASTER 200P-113-50 | 200mesh | 1,130mm(44.5") | ||
| RISO DIGITAL SCREEN QS MASTER 200P-113-50 PINK | ||||
| RISO DIGITAL SCREEN QS MASTER 200P-56-50 | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 200P-56-50 PINK |
RISO DIGITAL SCREEN MASTER (Additional mesh choices)
Additional mesh counts are available on ordered production basis.
Special ordering conditions may be applied. For more details, please contact your designated supplier.
| Product Name | Mesh | Width | Length | Applicable Models |
|---|---|---|---|---|
| RISO DIGITAL SCREEN QS MASTER 50P-113-20 C | 50mesh | 1,130mm(44.5") | 20m(21.9yd) | GOCCOPRO QS200 |
| RISO DIGITAL SCREEN QS MASTER 50P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 100P-113-20 C | 100mesh | 1,130mm(44.5") | GOCCOPRO QS200 GOCCOPRO QS1836 GOCCOPRO QS2536 | |
| RISO DIGITAL SCREEN QS MASTER 100P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 135P-113-20 C | 135mesh | 1,130mm(44.5") | ||
| RISO DIGITAL SCREEN QS MASTER 135P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 180P-113-20 C | 180mesh | 1,130mm(44.5") | ||
| RISO DIGITAL SCREEN QS MASTER 180P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 225P-113-20 C | 225mesh | 1,130mm(44.5") | ||
| RISO DIGITAL SCREEN QS MASTER 225P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 250P-113-20 C | 250mesh | 1,130mm(44.5") | ||
| RISO DIGITAL SCREEN QS MASTER 250P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 270P-113-20 C | 270mesh | 1,130mm(44.5") | ||
| RISO DIGITAL SCREEN QS MASTER 270P-56-20 C | 565mm(22.2") | |||
| RISO DIGITAL SCREEN QS MASTER 300P-113-20 C | 300mesh | 1,130mm(44.5") | GOCCOPRO QS1836 GOCCOPRO QS2536 | |
| RISO DIGITAL SCREEN QS MASTER 300P-56-20 C | 565mm(22.2") |

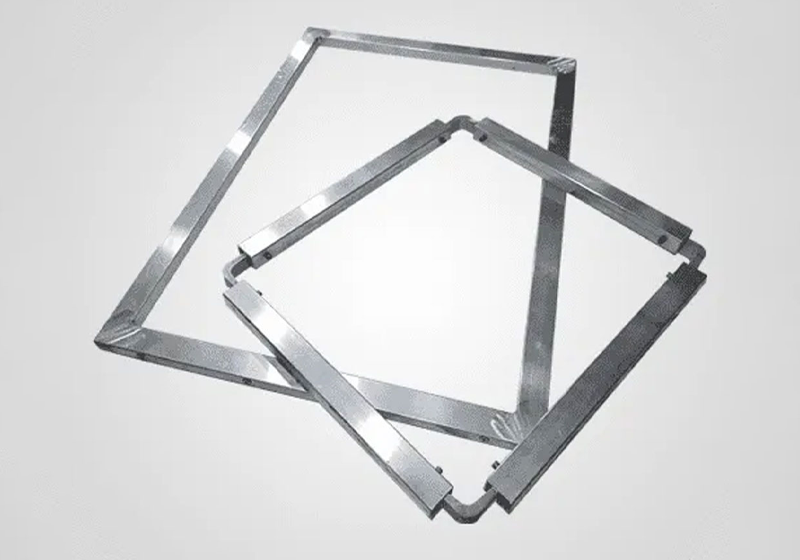

Screen Frame
Screen frames specially designed for the GOCCOPRO series
Clip Fit Thin Frame / Screw Fit Thick Frame
Clip Fit Thin Frame
Screw Fit Thick Frame
| Product Name | Size | Applicable Models |
|---|---|---|
| Frame 55 (Thin frame, clip fit) | Inner dimensions 280×550mm / 11.02×21.65in. | GOCCOPRO100 |
| Frame 39 (Thin frame, clip fit) | Inner dimensions 280×390mm / 11.02×15.35in. | |
| Frame 53 (Thick frame, screw fit) | Inner dimensions 260×530mm / 10.24×20.87in. | |
| Frame 42 (Thick frame, screw fit) | Inner dimensions 260×420mm / 10.24×16.54in. |
Self-Tensioning Screen Frame / Screw Type
| Product Name | Outer Size | Width of edges | Applicable Models |
|---|---|---|---|
| QUICK FRAME A 63×91 (Thread insert) | L635mm×W914mm / 25×36in. | 40mm (1.6") × all 4 edges | GOCCOPRO QS1836 GOCCOPRO QS2536 |
| QUICK FRAME A 57×80 Rev2 (Thread insert)* *Can be used with 565mm width screen roll as well although it is out of spec size. | L575mm×W800mm / 22.5×31.5in. | ||
| QUICK FRAME A5560 Rev2 (Thread insert) | L550mm×W600mm / 21.6×23.6in. | 30mm (1.2") × 1 edge 40mm (1.6") × 3 edges | GOCCOPRO QS200 GOCCOPRO QS1836 GOCCOPRO QS2536 |
| QUICK FRAME A3159 | L590mm×W310mm / 23.2×12.2in. | 30mm (1.2") × 4 edges | GOCCOPRO100 GOCCOPRO QS200 GOCCOPRO QS1836 GOCCOPRO QS2536 |
Self-Tensioning Screen Frame / Silicon Strip Type
Self-Tensioning
Screen Frame
Silicon Strip
| Product Name | Outer Size | Width of edges | Applicable Models |
|---|---|---|---|
| QUICK FRAME B5878 | L780mm×W580mm / 30.7×22.8in. | 30mm (1.2") × all 4 edges | GOCCOPRO QS200 GOCCOPRO QS1836 GOCCOPRO QS2536 |
| QUICK FRAME B5070 | L700mm×W500mm / 27.5×19.7in. | GOCCOPRO QS200 GOCCOPRO QS1836 | |
| QUICK FRAME B5060 | L600mm×W500mm / 23.6×19.7in. | GOCCOPRO QS200 GOCCOPRO QS1836 GOCCOPRO QS2536 | |
| SILICON STRIP 50 | 5.0mm×50m / 0.2"×54.7yd | ||
Options
| Product Name | Remarks | Applicable Models |
|---|---|---|
| RISO GOCCOPRO PRINTER DRIVER FOR MACINTOSH | Necessary for connecting the GOCCOPRO 100 with Macintosh | GOCCOPRO100 |
| RISO NETWORK CARD (TCP/IP, Ethernet:100BASE-TX/10BASE-T) | Necessary for network connection (LAN) and for connecting the GOCCOPRO 100 with Macintosh |
Screen ink
Water base ink for textile
*Available in specific regions
| Product Name | Capacity | Remarks |
|---|---|---|
| RISOAQUA INK 1,000ml BLACK | NET:1,000ml |
|
| RISOAQUA INK 1,000ml RED | ||
| RISOAQUA INK 1,000ml BLUE | ||
| RISOAQUA INK 1,000ml GREEN | ||
| RISOAQUA INK 1,000ml ORANGE | ||
| RISOAQUA INK 1,000ml YELLOW | ||
| RISOAQUA INK 1,000ml WHITE |

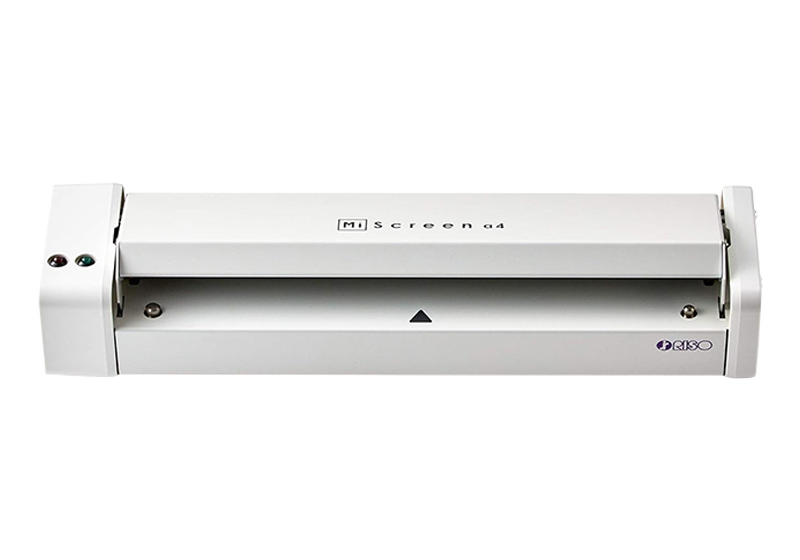

MiScreen a4 Consumables
Screen Making Start-up kit
Card Stock Paper Frame
Plastic Spatula
| Product Name | Remarks |
|---|---|
| MiScreen a4 Screen Making Start-up kit | Contents: MiScreen a4 Printing Board : 1 piece MiScreen a4 Plastic Frame : 1 piece RISO DIGITAL SCREEN MASTER MiScreen a4 : 5 Sheets Double-sided Adhesive Tape for MiScreen : 1 roll Plastic Squeegee 23cm for MiScreen : 1 piece |
| Power Cord for AC Adapter | for US, EU & UK , 1 piece |
| MiScreen a4 Printing Board | 1 sheet / pack |
| MiScreen a4 Plastic Frame | W310mm×L430mm / 12.2"×16.9" , 1 piece / pack |
| MiScreen a4 Card Stock Paper Frame | Large(W310mm×L430mm / 12.2"×16.9") & Small(W310mm×L250mm / 12.2"× 9.8"), 5 pieces each / Pack |
| Flat Metal Frame 30×43; MSA4*1 | W300mm×L430mm / 11.8"×16.9" , 1 piece / pack |
| Clip Fit Thin Frame 27×40(No Clip)*1*2 | W270mm×L406mm / 10.63"×15.98" , 1 piece / pack |
| Clips for Clip Fit Thin Frame | Long & Short, 2 pieces each / Pack |
| RISO DIGITAL SCREEN MASTER MiScreen a4 | 120mesh, 5 Sheets /Pack |
| 120mesh, 20 Sheets /Pack | |
| Double-sided Adhesive Tape for MiScreen | W10mm×L20m /0.4"×21.87yd , 1 roll |
| Plastic Squeegee 23cm for MiScreen | 1 piece |
| RISO SQUEEGEE M230 1 piece | W230mm×D45mm×H9mm / 9"×1.77"×0.35" |
| Plastic Spatula for MiScreen | 1 piece |
*1: This frame can be used for printing only. Either MiScreen a4 Card Stock Paper Frame or MiScreen a4 Plastic Frame is required for screen making process. Double-sided tape is necessary to stretch an image screen on to the frame.
*2 : No Clips are included in this product.
