Transmatic Machine

Transmatic Machine

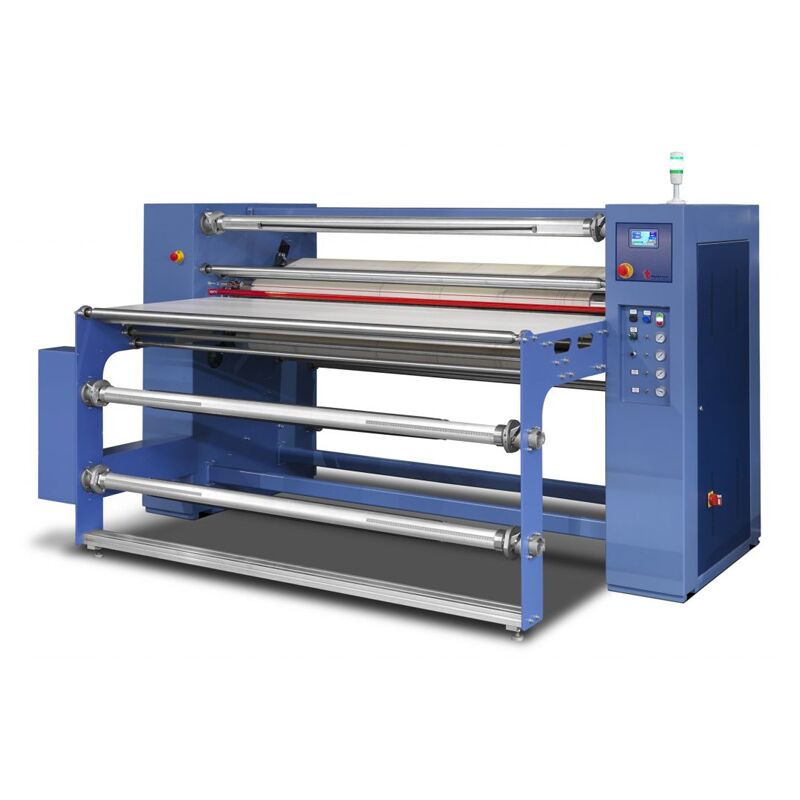

The Transmatic 7140 / 7160 SPORTS has been specially designed for digital printing on cutted pieces and placed prints.
This application is indicated especially in the field of printing of sport shirts. A new system of heating oil ensures a uniform temperature distribution over the entire length of the cylinder with a minimum consumption of energy.
The heating systems oil Transmatic consume 50% less energy of electric machines. The diameter of the drum 20 cm/ 8″ is suitable to the needs of digital printing.
The 7140 / 7160 has 3 different modes of operation :
  • The sheets of transfer paper are placed with the design facing upward on the table, the cut fabrics (front, rear, arms, necks etc.) Are placed above the drawing. The pieces of printed fabric and the paper out both on the front of the machine.
  • Use of transfer paper in reels with the possibility of placing pieces of fabric cut.
  • Mainstream press, transfer paper and tissues of both continuous.
The calendars transmission with the new oil actually increase your production, make risparmare time and energy costs. High productivity, design quality and our service after the sale, give good reasons to invest Transmatic, for all the needs of digital sublimation printing, offset and gravure.
Features
  • Cylinder diameter 20 cm /8″ heated to oil
  • Production 0,53 mt/min. linear (0,57 yd/min.) respectively of 40 second dwell time
  • System Guide, no. 3 unwinding / nr. 3 reels
  • Electropneumatic control guide felt
  • A proportional working thermostat regulates the temperature with a remarkable energy saving.
  • Auto-off to reach 140°
  • An independent motor for driving the felt and a motor for the three rewinders
  • Pneumatic clutches
  • Requires compressed air
Strong 7140 SPORT 7160 SPORT
Power installed 6 kw – 26 a 10.8 kw – 46.9 a
Average consumption 3 kw – 13 a 5 kw – 21.7 a
Belt size 120 cm /47″ 170 cm / 67″
Working width 110 cm /43” 160 cm / 63”
Net weight 700 kg / 1540 lb 1000 kg / 2280 lb
Size 213 x 173 x 153 cm / 84 x 68 x 60″ 263 x 173 x 153 cm / 103,5 x 68 x 60″
