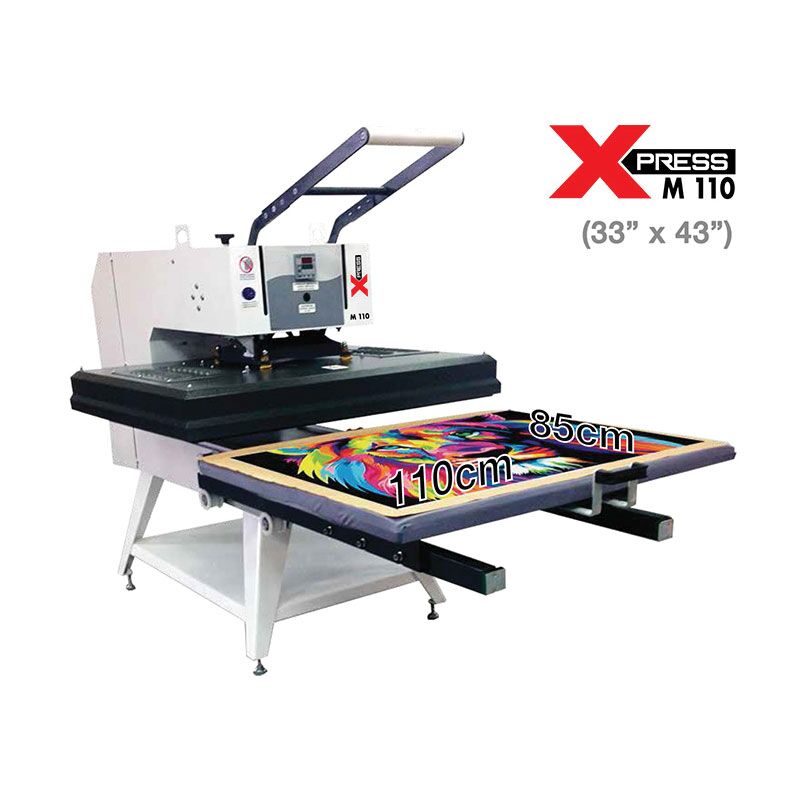

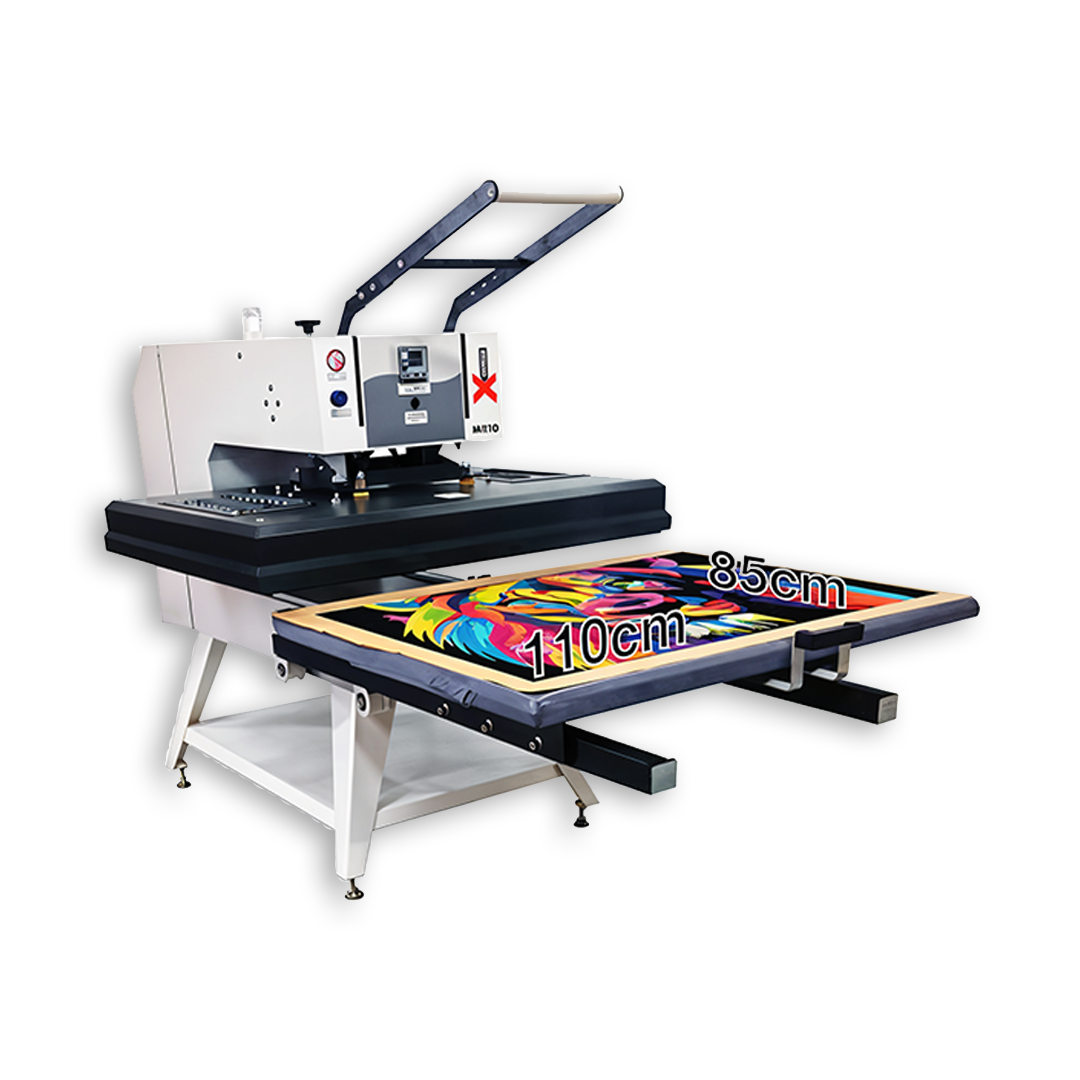

X Press M 110 – المكبس الحراري
The X Press M 110 is easy to operate Manual Pull-Out Drawer Heat Press with a transfer area of 33”x 43” (110cm X 85cm)
The new X Press M 110-85 manual heat-press, a unit developed specifically for the mid-range market. With an overall transfer area of 33”x 43”, the X Press M110 – 85 is the perfect complement to medium range and smaller 44-inch and 54-inch dye-sub printers from EPSON, Mutoh, and Mimaki. The X Press M 110 is easy to operate and needs minimal physical effort when using the EZ-glide pull-out drawer and the substrate mounting system. Digital time and temperature controllers ensure consistent temperature and pressure along the entire platen. The new PTM-110 is having full of capabilities generally found on expensive heat presses. The new X Press M 110-85 manual heat-press, a unit developed specifically for the mid-range market. With an overall transfer area of 33”x 43,” the X Press M110 – 85 is the perfect complement to medium range and smaller 44-inch and 54-inch dye-sub printers from EPSON, Mutoh, and Mimaki. The X Press M 110 is easy to operate and needs minimal physical effort when using the EZ-glide pull-out drawer and the substrate mounting system. Digital time and temperature controllers ensure consistent temperature and pressure along the entire platen. The new PTM-110 is having full of capabilities generally found on expensive heat presses.
Features
- Adjustable pressure
- Digital controls
- EZ-glide drawer
- Ergonomic-assist platen closing
- Heavy-duty steel frame
- Low Handle for Ease of Use
- Consistent Heat and Pressure Distribution
Product Name | X Press M 110 Manual Heat Press |
Heat Platen Size | 33” x 43” |
Number of Drawers | 1 |
Digital Display | Timer / Temperature |
Heat Press Type | Manual |
Max. Temperature Range | 240°C – 498°F |
Pressure System | Fully Adjustable Manual Knob |
Frame Construction | Machine Cast Aluminum |
Heat Platens Construction | Double Teflon Coated Plates |
Function of Roll-to-Roll | No |
Power Requirements | 220V Single Phase, 20 Amps |
Machine Dimensions ( L x W ) | 67.5” x 39” |
Dimensions ( H x W ) | 51.5” x 41.7” |
Weight | 202 lbs / 92 kg |
Warranty | One Year |
